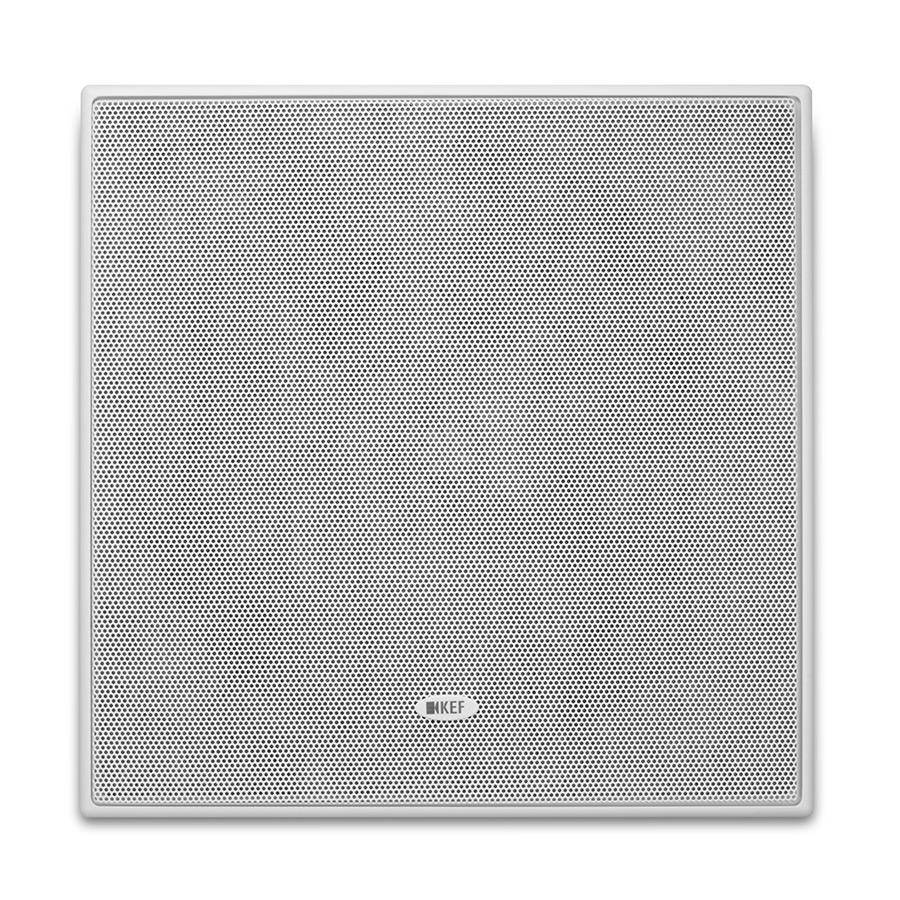

The stylish Ci200QS's thin bezel and narrow rim allow for flawless integration into your wall or ceiling. This product features KEF's Uni-Q driver, which spreads sound over a wider area enabling you to use less speakers. These two features alone combine to make the Ci200QS perfect for any space.
Features KEF’s patented Uni-Q driver array
Ci200QS

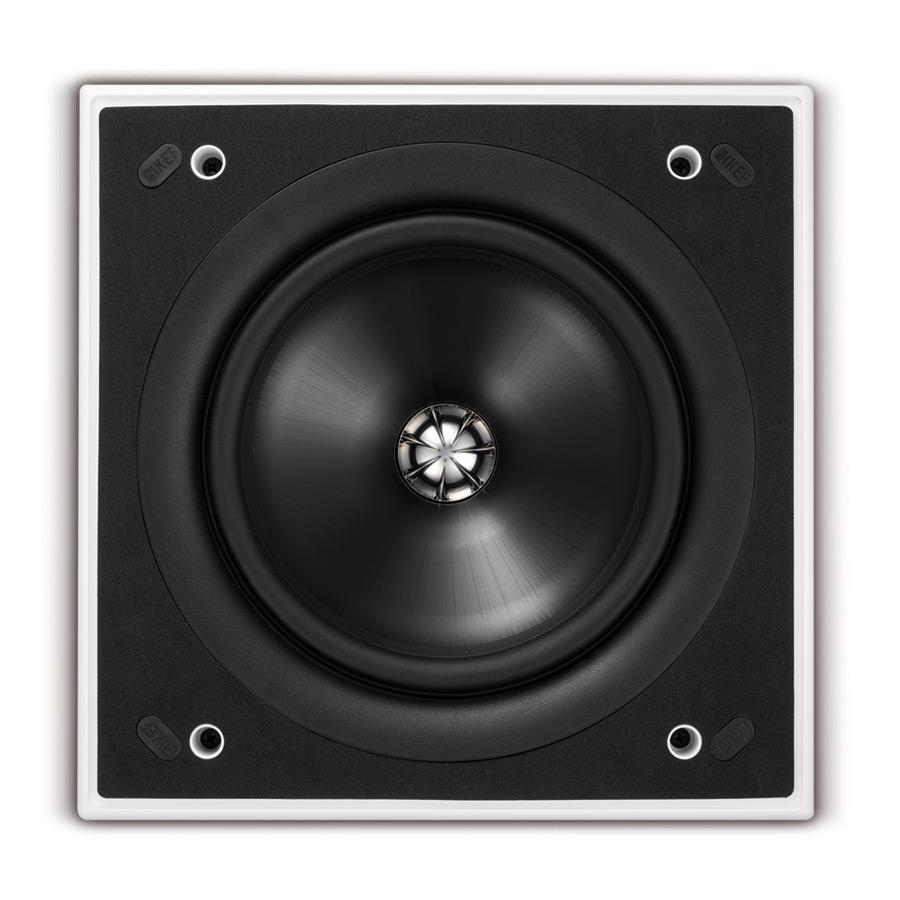

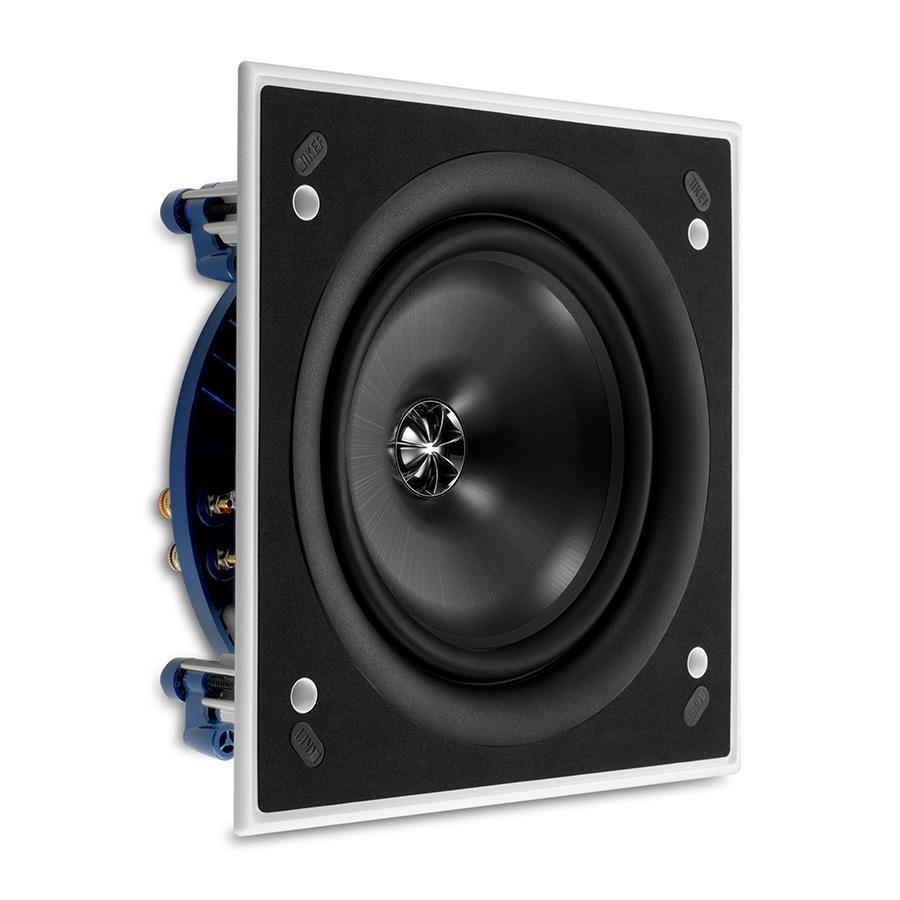

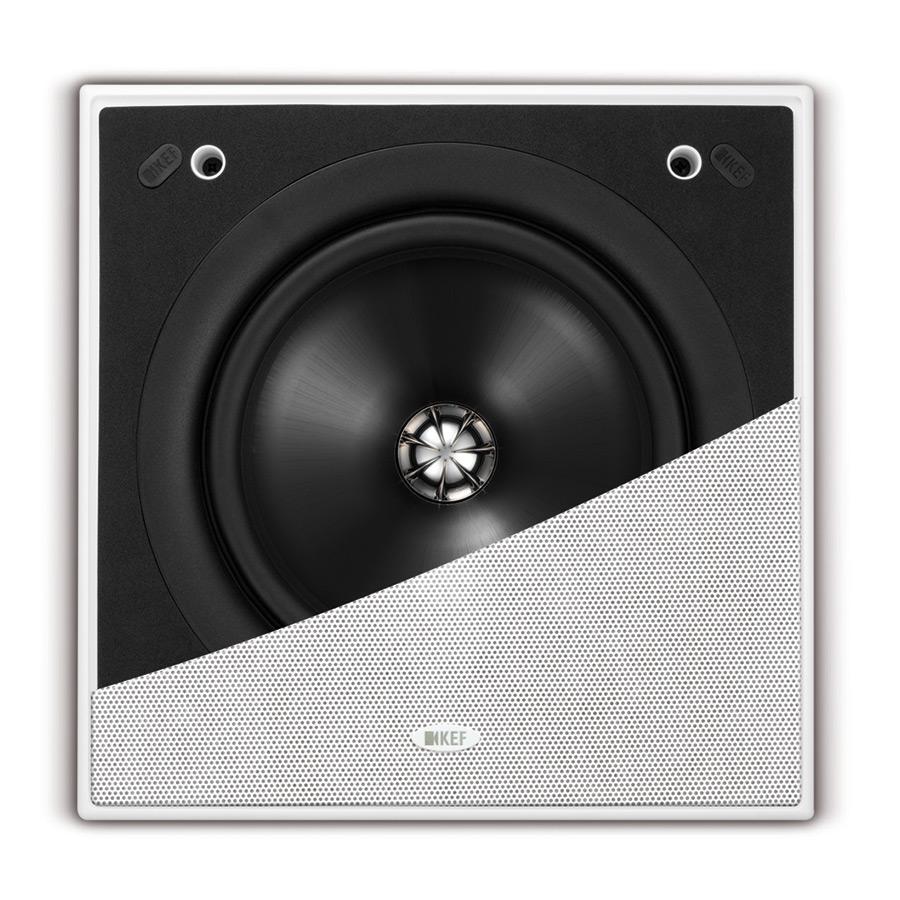

Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci Q Series range gives you tremendous freedom to position the speakers where you please.
Fast and Easy to Install
KEF's Ci loudspeaker design makes them so quick and easy to install that once the wire is run and the hole is cut in your wall or ceiling you can be listening to music in less than two minutes.
仕様
詳しく
仕様
公称インピーダンス
8 Ω
感度
90dB (2.83V/ 1m)
周波数特性
35Hz - 34kHz (±6dB) open backed
クロスオーバー周波数
2.5kHz
使用ユニット
LF: 200mm (8in.)
HF: 25mm (1in.) Uni-Q
HF: 25mm (1in.) Uni-Q
Amplifier Power
10 - 150W
製品外形寸法
273 x 273 x 106 mm (10.75 x 10.75 x 4.17 in.)
穴開け寸法
238 x 238 mm (9.37 x 9.37 in.)
取付板厚
最大板厚: 38mm (1.5 in.)
最小板厚: 7mm (0.28 in.)
最小板厚: 7mm (0.28 in.)
表面からの取り付けの深さ
99.8mm (3.93in.)
オプションのフレーム下地
RIF200S
オプションのリアエンクロージャー
RNC200S
正味の重さ
2.4kg (5.3lbs.)
販売単位
1 本
書類をダウンロード
Manual
Individual Information Spec. Sheet
Ci Series Spec. Sheet
Ci Series Minimum Cabinet Volume Chart
Cutout Template
EASE GLL DATA
Product Drawing
Ci Series Pamphlet
Ci Accessory Guide
Individual Information Spec. Sheet
Ci Series Spec. Sheet
Ci Series Minimum Cabinet Volume Chart
Cutout Template
EASE GLL DATA
Product Drawing
Ci Series Pamphlet
Ci Accessory Guide
所見
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
