THX ULTRA Certified 200mm Subwoofer
Certified to THX ULTRA2 and THX SELECT2 standards, the formidable Ci200QSb-THX in-wall subwoofer delivers deep bass and theatre thumping output capabilities, matched to the uncanny ability to deliver all the drama and emotional intensity of full theatre sound quality.

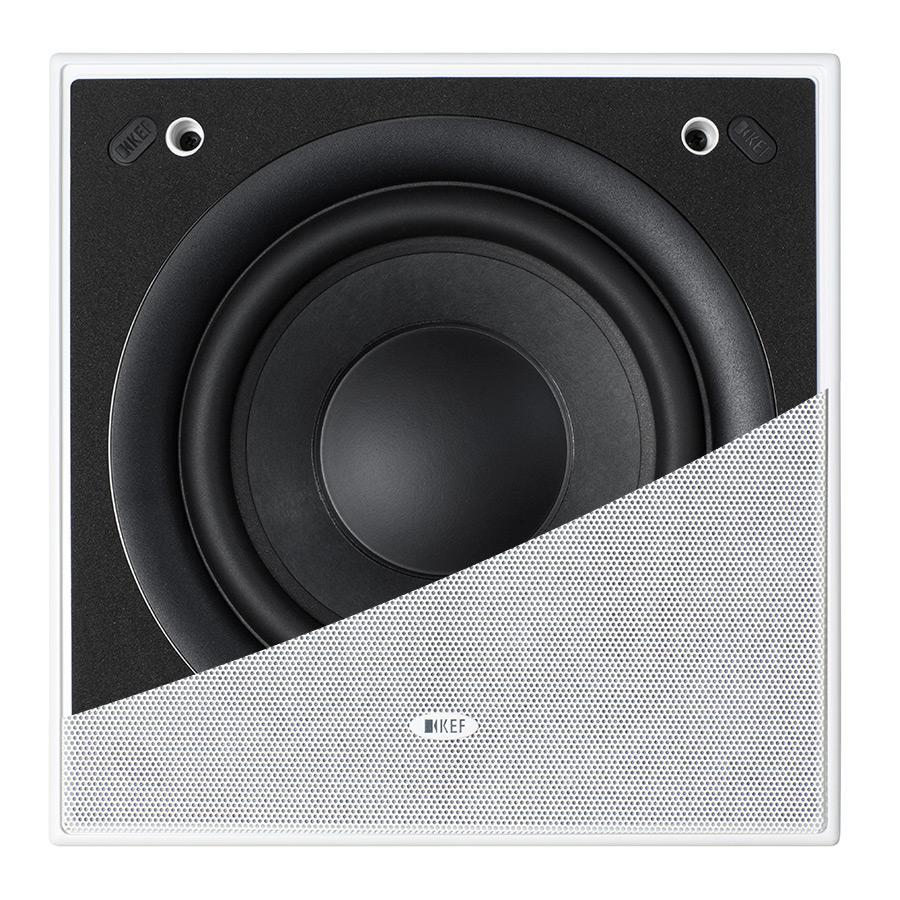

Ci200QSb-THX

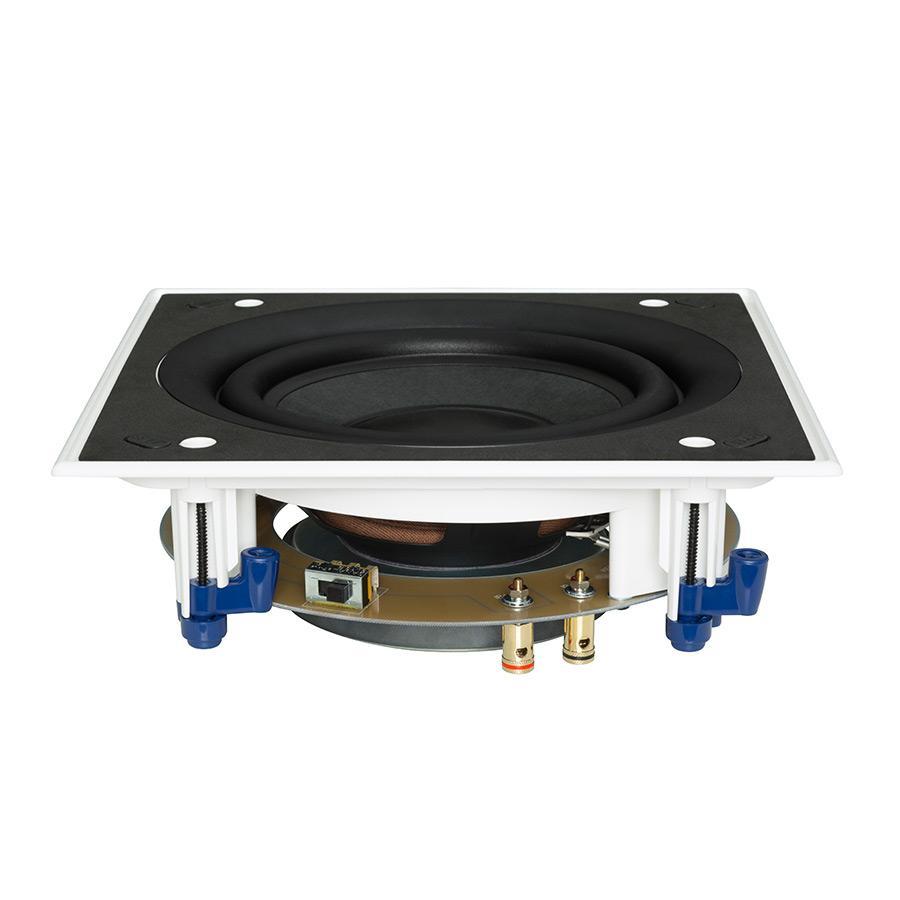

Certified to THX ULTRA2 and THX SELECT2 standards, the formidable Ci200QSb-THX in-wall subwoofer delivers deep bass and theatre thumping output capabilities, matched to the uncanny ability to deliver all the drama and emotional intensity of full theatre sound quality. With a powerful high-output 200mm (8in.) sub-bass driver, the Ci200QSb-THX can be used in passive mode to supplement the LF output of KEF’s Ci series in-wall or in-ceiling speakers. In Active mode, when 2 pair of the Ci200QSb-THX subwoofer are powered by the powerful 250Wx 2 KEF KASA500 System Amplifier the performance meets THX Select2 specification. When 4 pair of the Ci200QSb-THX are powered by 2 KEF KASA500 System Amplifiers the performance meets THX Ultra2 specification.
詳しく
特徴
THX Certified Ultra2 / Select2

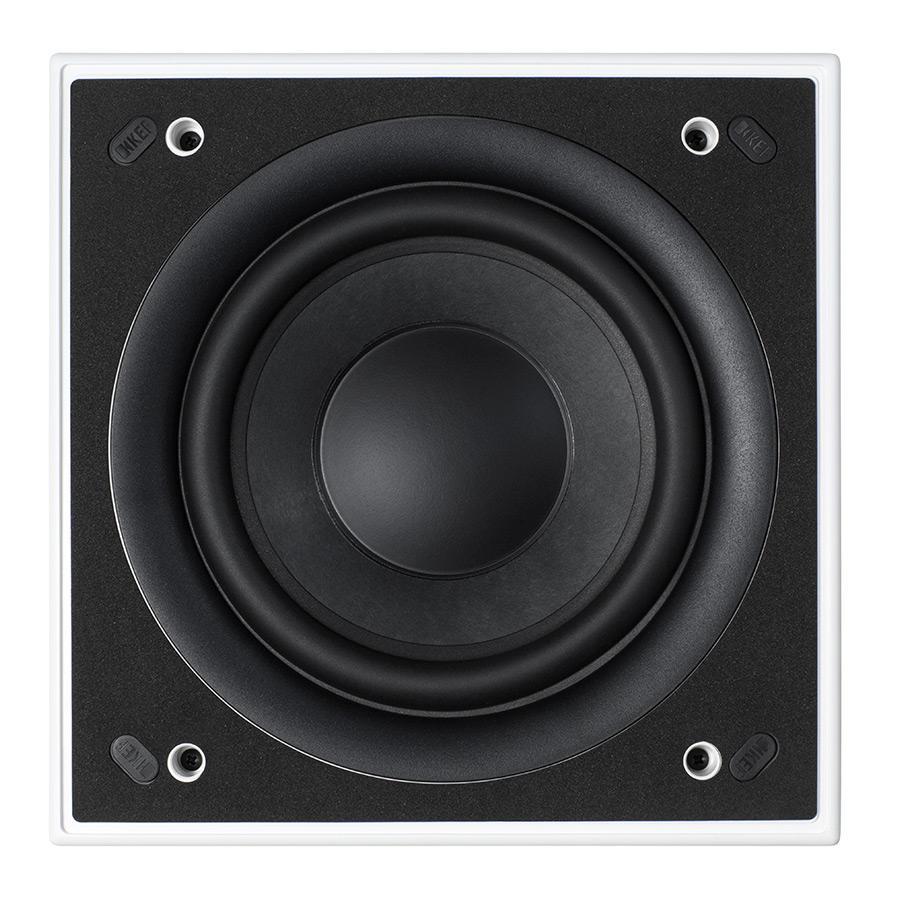

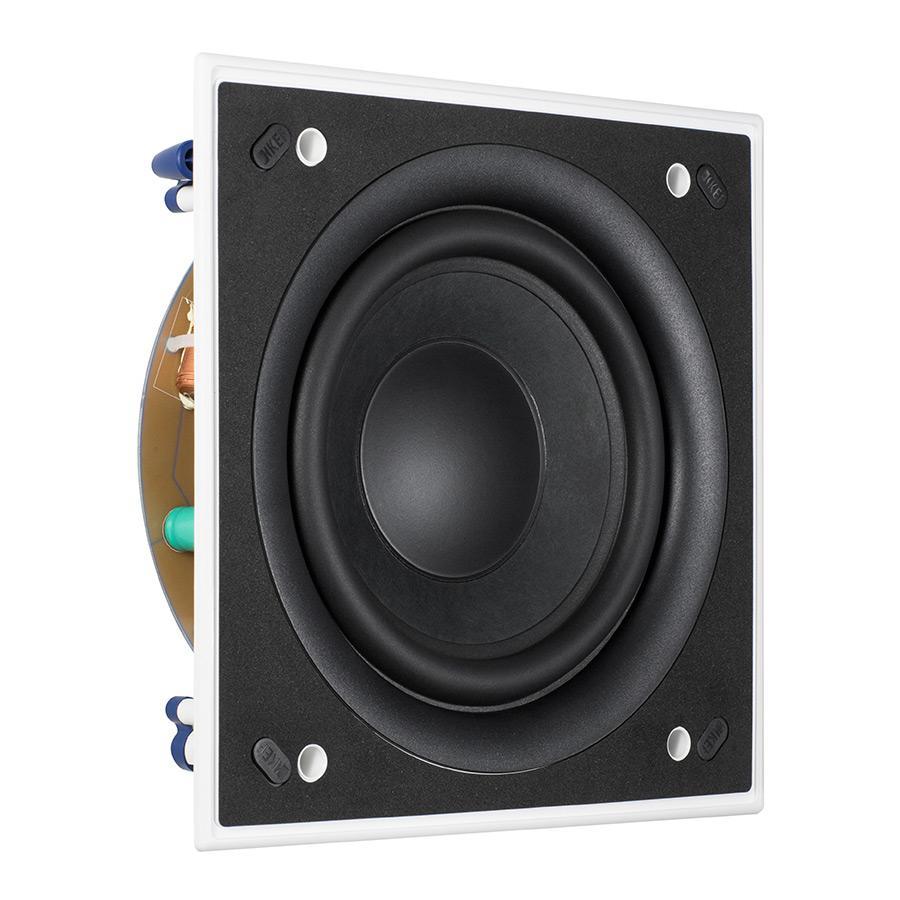

200mm (8in.) woofer unit with extended bass response

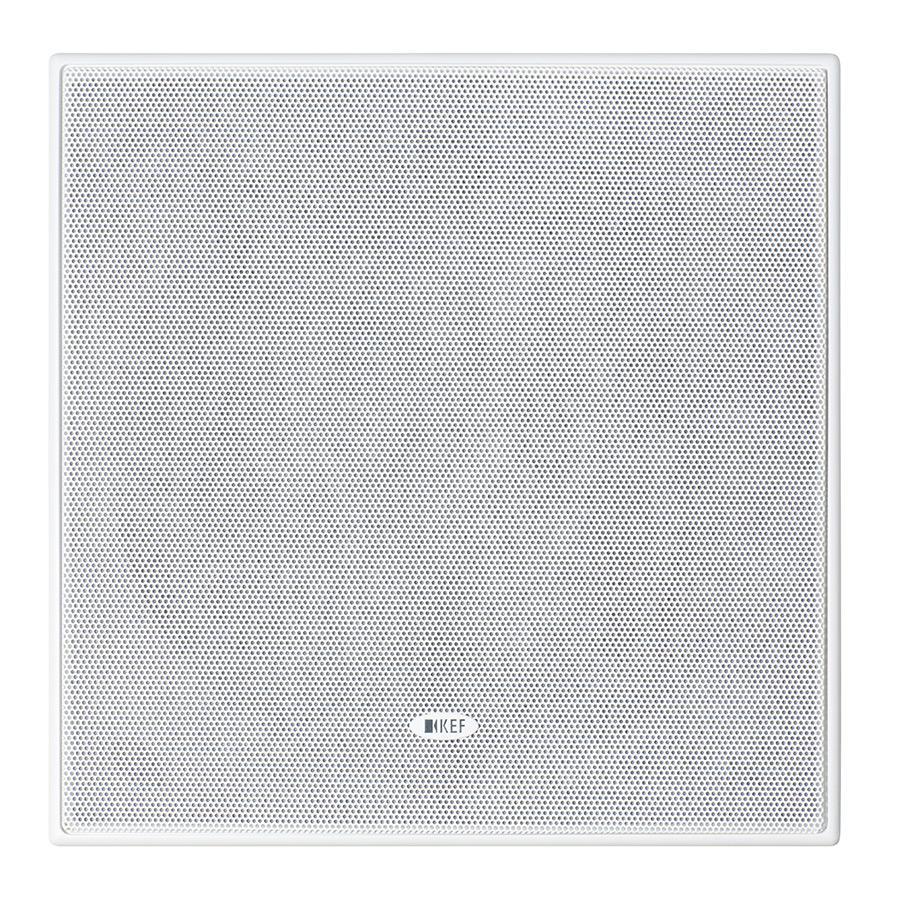

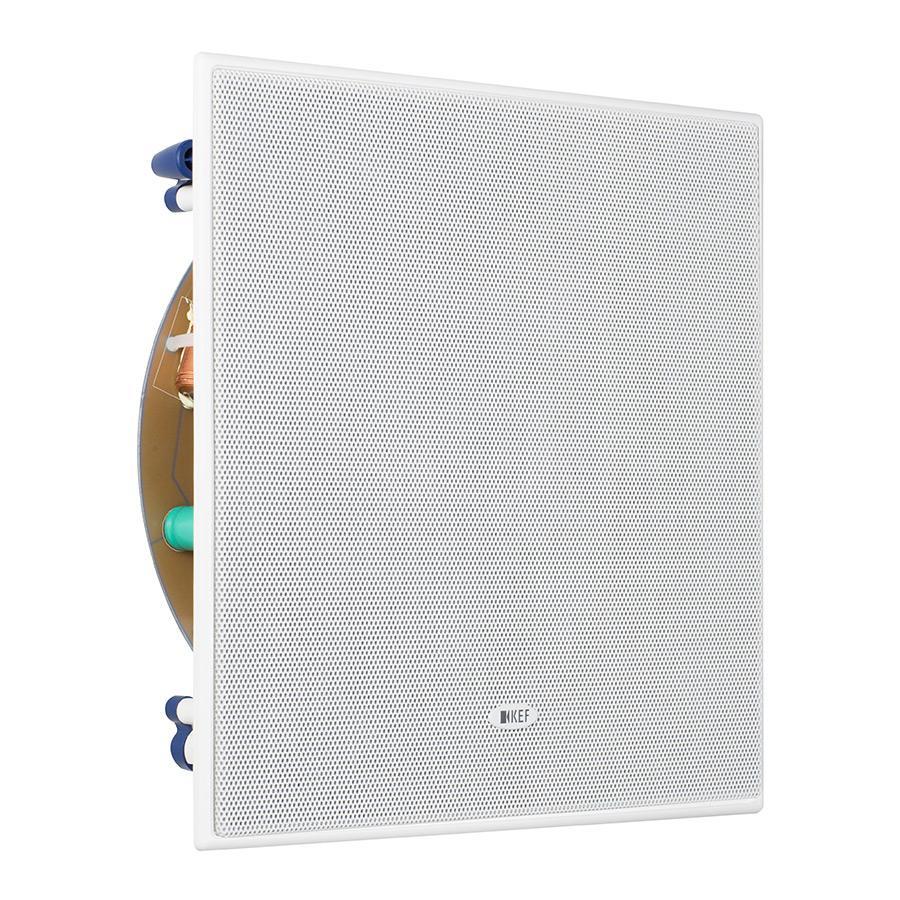

Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor

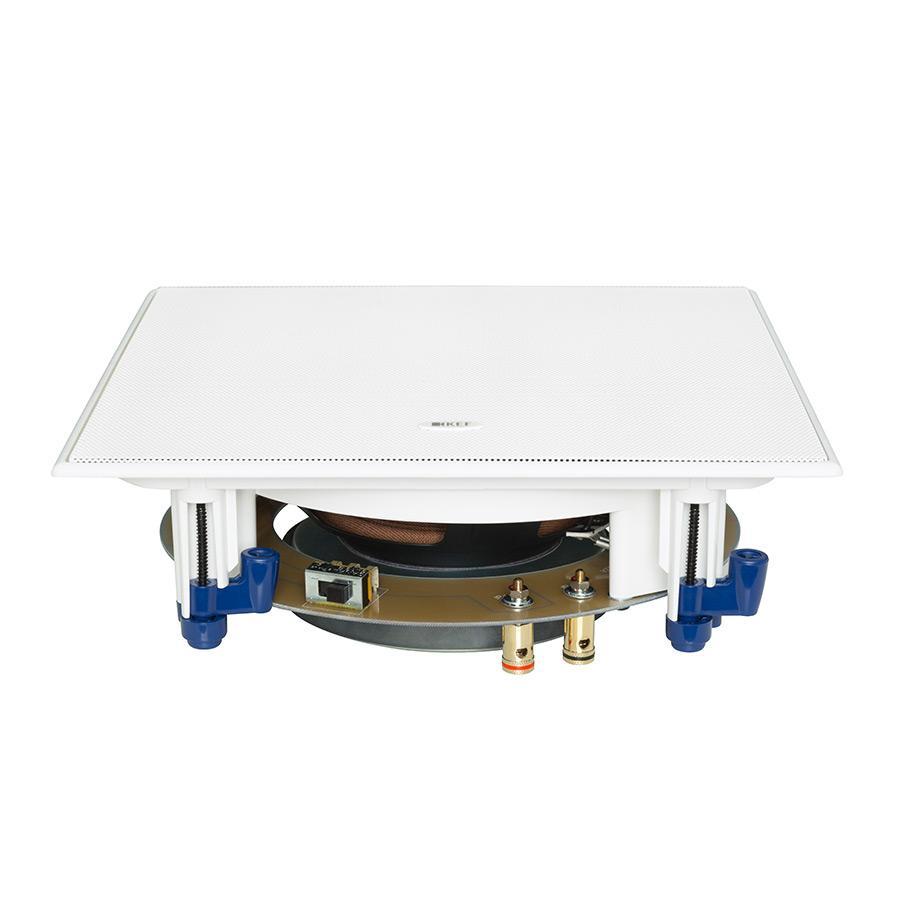

Fast, versatile installation on virtually any surface via dogleg

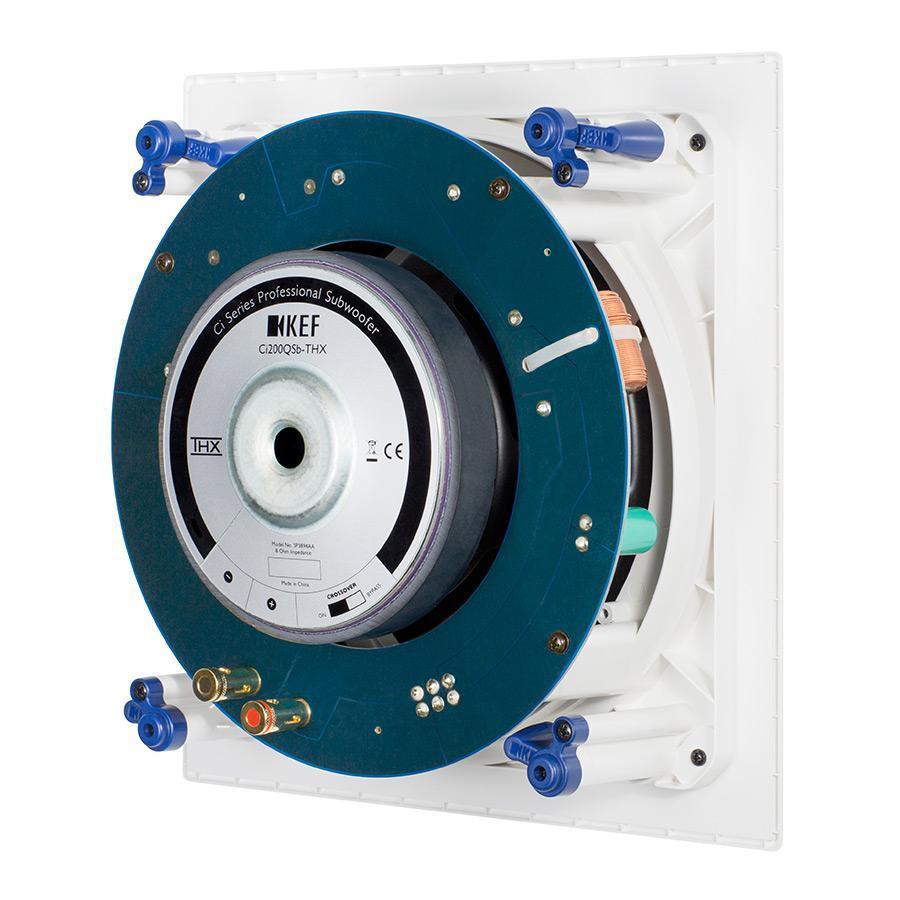

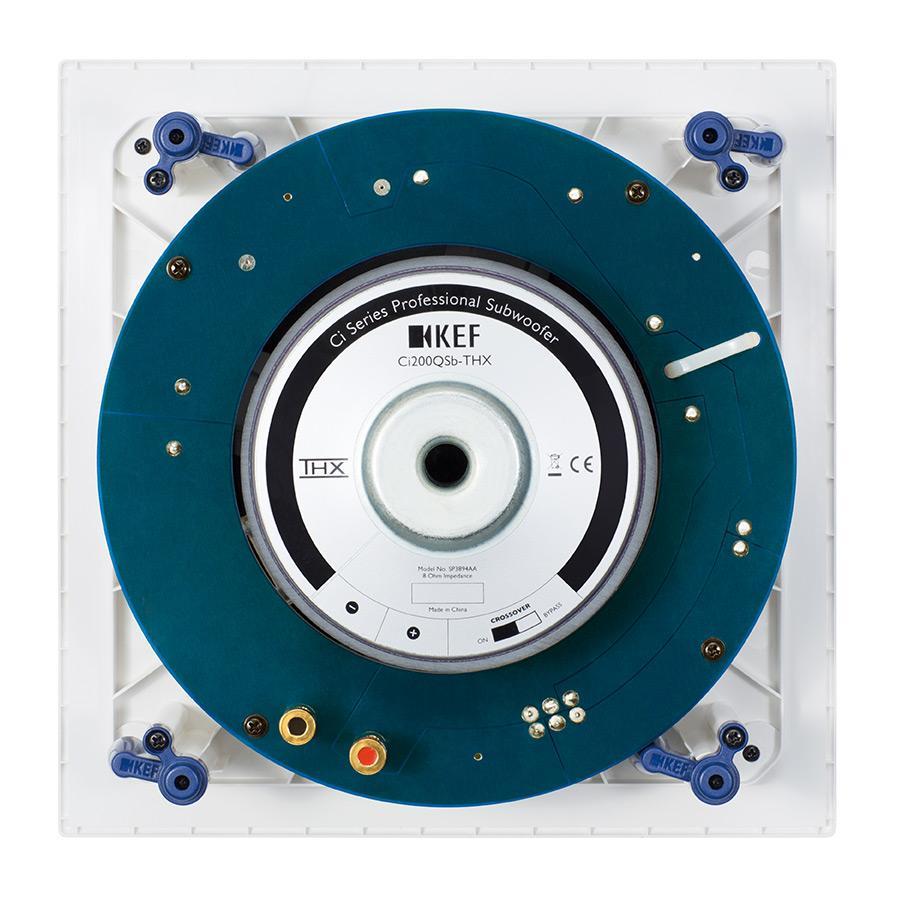

Can be used in passive mode with internal crossover or active mode with KEF’s KASA500 System Amplifier for THX certified performance
Sold in Pairs
200mm (8in.) woofer unit with extended bass response
Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
Fast, versatile installation on virtually any surface via dogleg
Can be used in passive mode with internal crossover or active mode with KEF’s KASA500 System Amplifier for THX certified performance
Sold in Pairs
仕様
公称インピーダンス
6 Ohm - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
N/A - Active Mode (KASA500)
感度
85dB - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
N/A - Active Mode (KASA500)
周波数特性
40Hz-100Hz - Passive Mode (Crossover "ON")
18Hz-140Hz - Active Mode (KASA500)
18Hz-140Hz - Active Mode (KASA500)
クロスオーバー周波数
100Hz - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
N/A - Active Mode (KASA500)
使用ユニット
LF: 200mm (8 in.)
推奨パワーアンプ
10-150W - Passive Mode (Crossover "ON")
KASA500 - Active Mode (KASA500)
KASA500 - Active Mode (KASA500)
製品外形寸法
Diameter: 273 x 273 x 106 mm (10.75 x 10.75 x 4.17 in.)
穴開け寸法
H x W: 238 x 238 mm (9.37 x 9.37 in.)
取付板厚
最大板厚: 40mm (1.58 in.)
最小板厚: 6mm (0.24 in.)
最小板厚: 6mm (0.24 in.)
表面からの取り付けの深さ
101.6mm (4 in.)
オプションのフレーム下地
RIF200S
正味の重さ
3.3kg (7.28 lbs)
販売単位
ペア
KEF は事前の告知なく改良等による仕様の変更する権利を留保します。
詳細は CI SOFTWARE DOWNLOAD ページをご参照ください
